This slideshow shows how to replace a damaged jack in a wired turntable.
Click on the picture for a printable copy
Have spacers ready so the terminals on the New Jack don't get damaged too.
|
DHTMLGoodies.com
the styrofoam doughnut protects the Jack's terminals
DHTMLGoodies.com
The doughnut comes off - don't turn it up-side-down!
DHTMLGoodies.com
This Jack has a broken terminal... we'll replace it
DHTMLGoodies.com

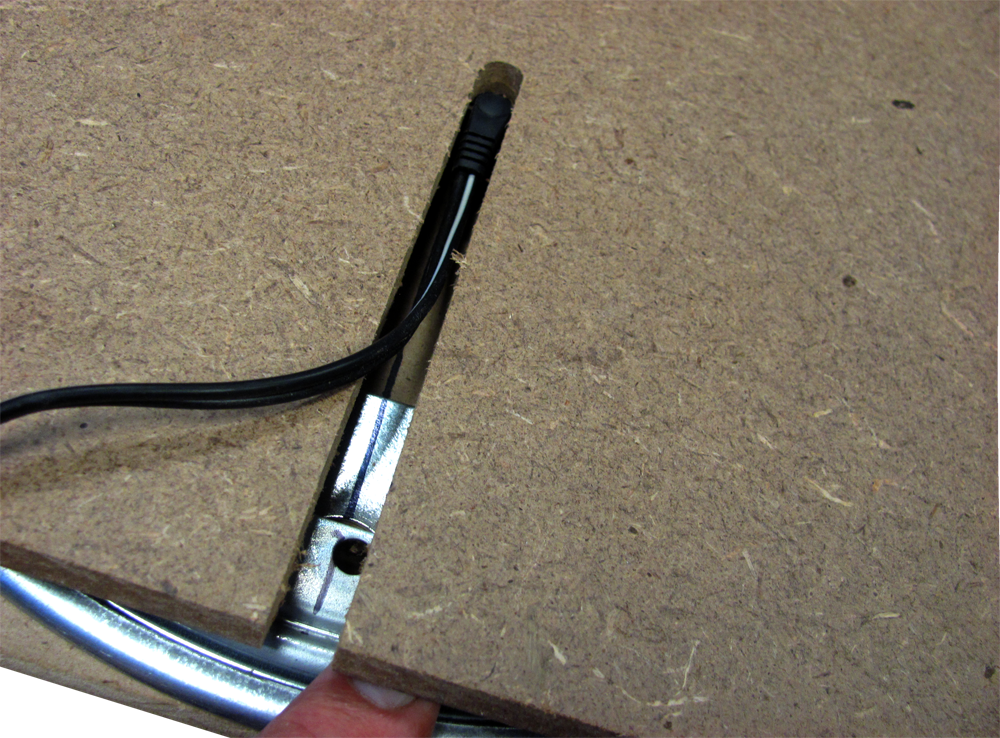

a coat hanger is a good tool for lifting out the plug
DHTMLGoodies.com
Mark the Plug's slot on the inside of the turntable
DHTMLGoodies.com
the recepticle might be offset toward the mark or away from the mark
DHTMLGoodies.com
Write "Toward" or "Away" on the panel to record the orientation
DHTMLGoodies.com
put it in the hole with the offset aimed the same as the old Jack.
DHTMLGoodies.com
The offset is the same as the original Jack. Put on the nut.
DHTMLGoodies.com
Line up the mark on the outer ring with the mark on the inner ring
DHTMLGoodies.com
Turn the turntable over without letting the Bottom slide
DHTMLGoodies.com

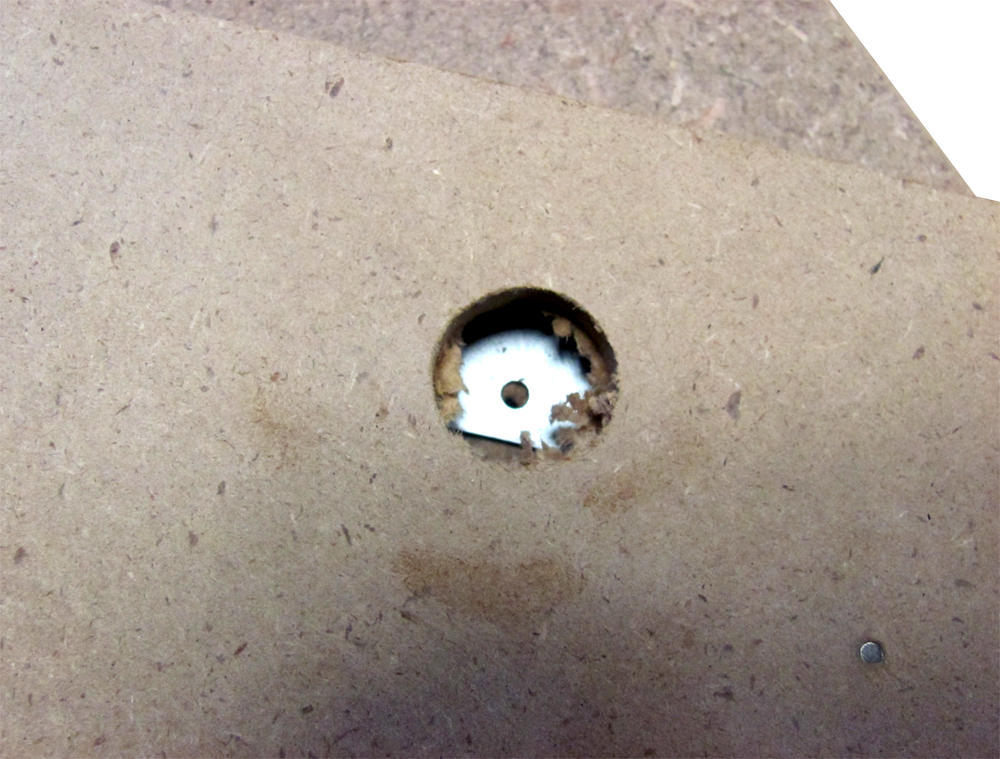

If the marks are still lined up, you should be able to find a screw hole
DHTMLGoodies.com
Insert screws (my finger is keeping the screw on the screwdriver)
DHTMLGoodies.com
I am soldering on the wire (speaker wire or doorbell wire)
DHTMLGoodies.com
stripped 1/8", the striped side of the wire is going to the center terminal
DHTMLGoodies.com
just enough heat so the solder flows ("run and done")
DHTMLGoodies.com

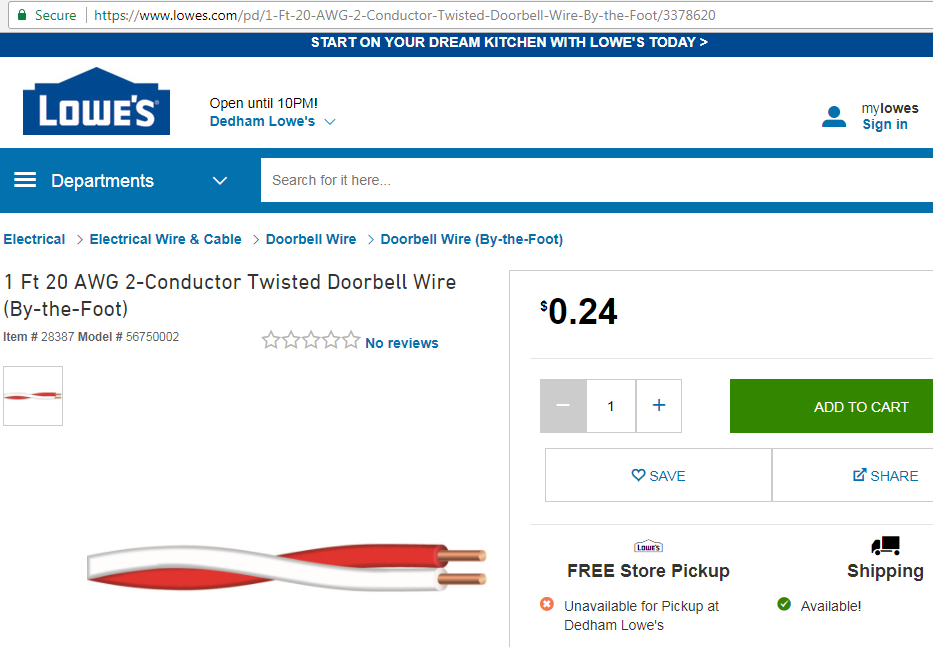

Home Depot or Lowes sells doorbell wire by the foot (but you may have to pre-order)
|
