Prudence wires a 1759

Prudence wires a NC1759

This NC1759 has a
custom Attic Ceiling

Click on the picture for a printable copy

DHTMLGoodies.com

The Oscillating Multitool is great for making electrification slots 01D.png

DHTMLGoodies.com

... and for cleaning the provided slots 02D.png

DHTMLGoodies.com

3. Starting the Main Loop 03D.png

DHTMLGoodies.com

4. Up the side starting in the cellar 04D.png

DHTMLGoodies.com

5. The backing will stay on - the tapewire is being pulled to the end 05D.png

DHTMLGoodies.com

6. 06D.png

DHTMLGoodies.com

7. 07D.png

DHTMLGoodies.com

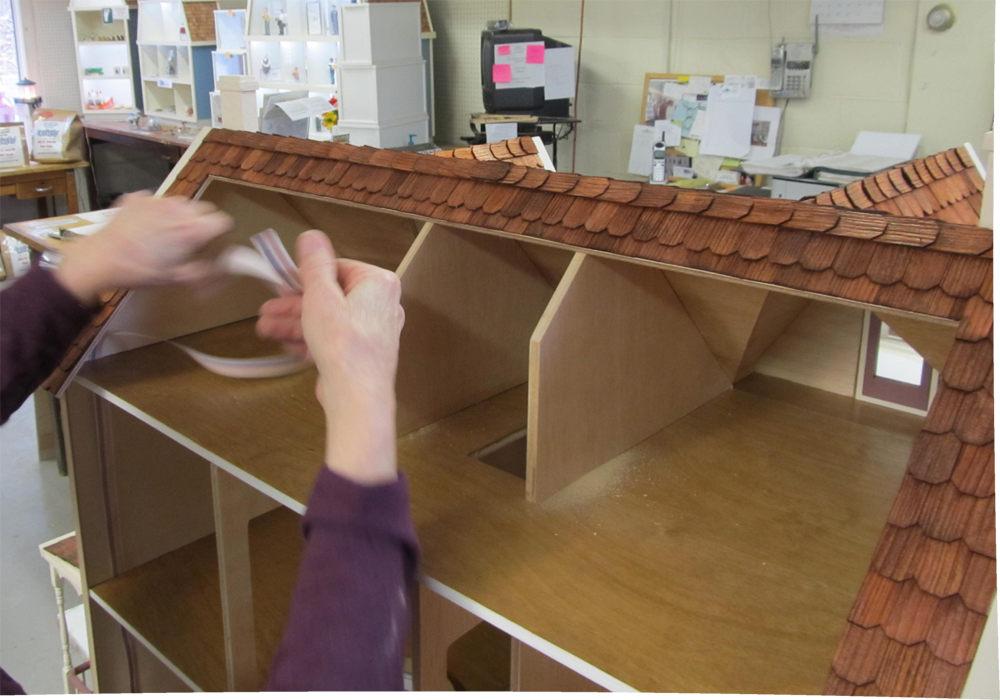

8. One continuous piece 08D.png

DHTMLGoodies.com

9. no cuts or joints 09D.png

DHTMLGoodies.com

10. This house has a custom Attic Ceiling - a nice improvement when hanging attic lights 10D.png

DHTMLGoodies.com

11 11D.png

DHTMLGoodies.com

12 12D.png

DHTMLGoodies.com

13 No twists - 13D.png

DHTMLGoodies.com

14 the re-directs will be sorted out when it comes time to lay the tapewire 14D.png

DHTMLGoodies.com

15 15D.png

DHTMLGoodies.com

16 Back down the other side 16D.png

DHTMLGoodies.com

17 17D.png

DHTMLGoodies.com

18 ... and back into the cellar 18D.png

DHTMLGoodies.com

19 Pull thru a little extra, take off the backing, then pull it back 19D.png

DHTMLGoodies.com

20 floor-by-floor, pull a loop, take off the backing, -> 20D.png

DHTMLGoodies.com

21 pull it tight, rub it down. 21D.png

DHTMLGoodies.com

22 ... all the way back to the beginning 22D.png

DHTMLGoodies.com

23 Every corner is pleated, not cut! What a tidy job. 23D.png

DHTMLGoodies.com

24 Do not eyelet a folded (pleated) corner... it will be a short circuit. 24D.png

DHTMLGoodies.com

25 Straight and tidy 25D.png

DHTMLGoodies.com

26 The access into the cellar had to be carved out 26D.png

DHTMLGoodies.com

27 Tapewire laid on the Foundation within the cellar 27D.png

DHTMLGoodies.com

28 Eyeletting the wire from the Jack to the Main Loop 28D.png

DHTMLGoodies.com

29 I always do the center tap of the Jack to the copper lead in the tapewire in case I hook it up to LEDs 29D.png

DHTMLGoodies.com

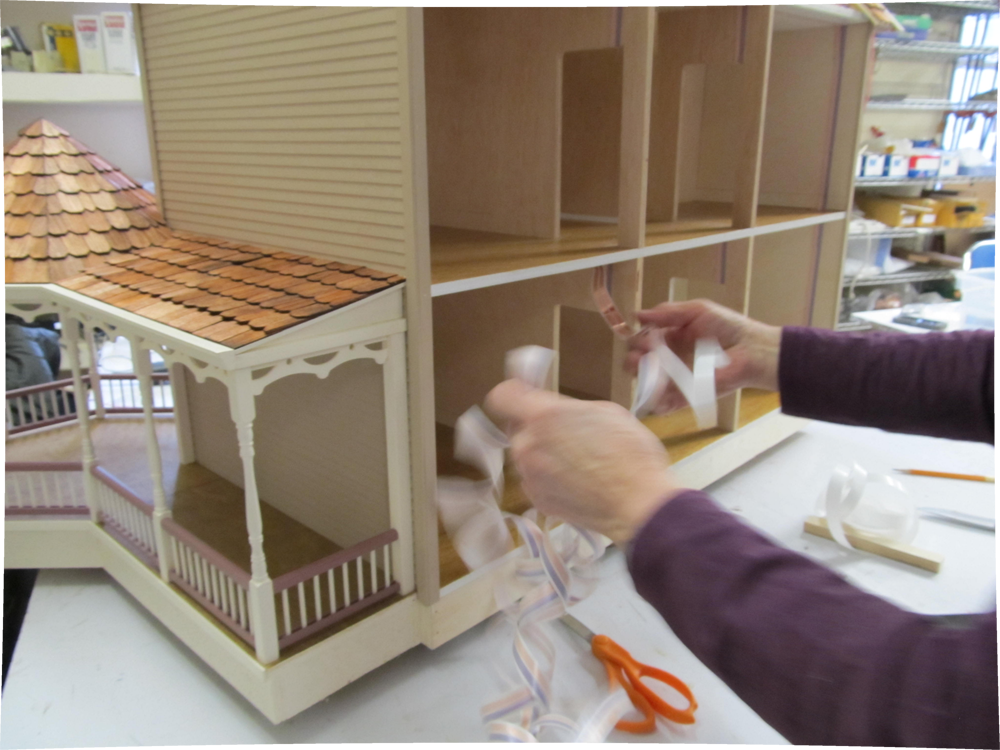

30 Running the Ceiling Loops 30D.png

DHTMLGoodies.com

31 These could be thru the doors or thru e-slots... 31D.png

DHTMLGoodies.com

32 I often do the Ceiling Loops before installing Dividers 32D.png

DHTMLGoodies.com

33 Then it doesn't matter where I run them - 33D.png

DHTMLGoodies.com

34 they just have to line up with the Main Loop 34D.png

DHTMLGoodies.com

35 Marking the Sconce Runs 35D.png

DHTMLGoodies.com

36 ... and now the Base runs - again, one piece, side-to-side, 36D.png

DHTMLGoodies.com

37 Everything connects to the Main Loop on both ends 37D.png

DHTMLGoodies.com

38 no joints (pleated re-directs only) 38D.png

DHTMLGoodies.com

39 No joints means more robust! 39D.png

DHTMLGoodies.com

40 40D.png

DHTMLGoodies.com

41 41D.png

DHTMLGoodies.com

42 42D.png

Prudence came over to borrow my Oscillating Multitool and to kibitz
