E239 Striplight Connector

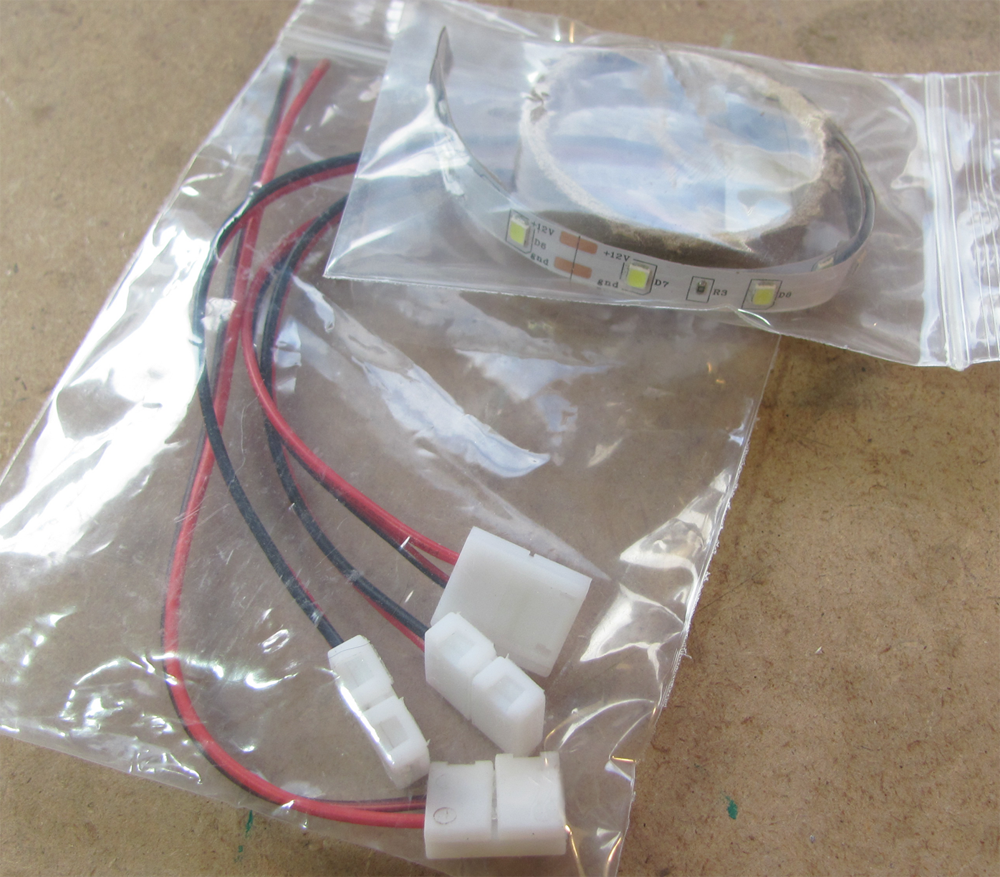

01. Packs of E239 Connectors and 12LED-P 01D.png

02. E239 fits 8mm Striplights with 50mm cut lengths (see links at left) 02D.png

03. ExtraBrite LEDs can be used in any multiple of a "Cut Length" 03D.png

04. Each "Cut Length" has 3 emitters and a resistor 04D.png

05. The E239 Connector is marked with a "+" on the side with the red wire 05D.png

06. the "+" on the connector must line up with the "+" on the striplight
this end of the tapewire does not line up 06D.png

07. ... but when it is turned end-for-end, it does line up 07D.png

08. Peal back the Backing on the end before inserting the Tapewire into the Connector 08D.png

09. The contacts are tight 09D.png

10. I'll give myself a little more room so the fit is gentle 10D.png

11. Under the tabs and under the Contacts... the Contacts line up with the Targets 11D.png

12. Snap! 12D.png

13. Close the lid 13D.png

14. Test 14D.png
